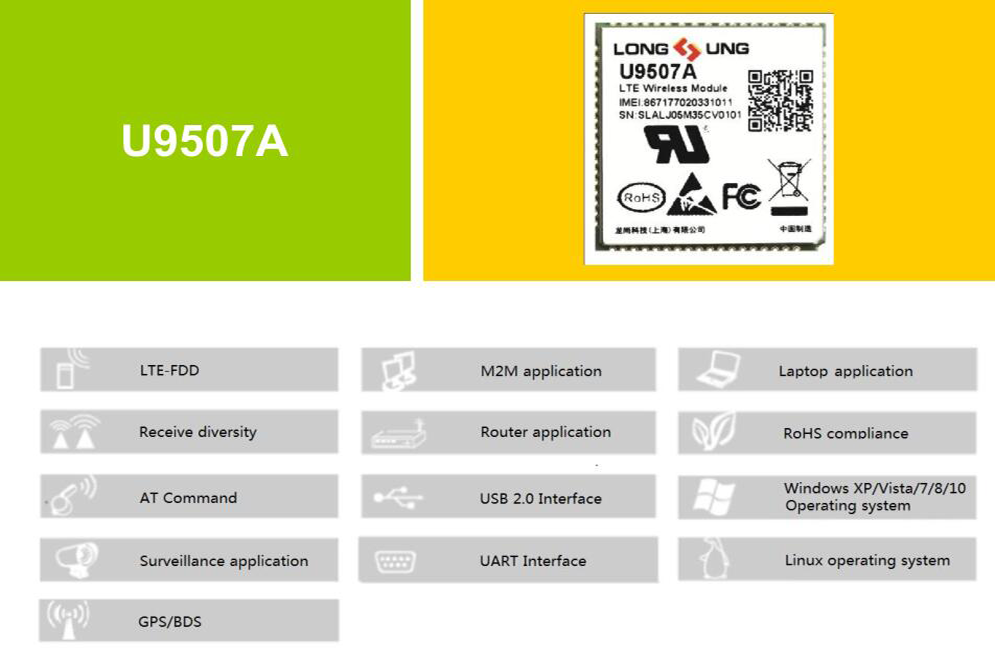

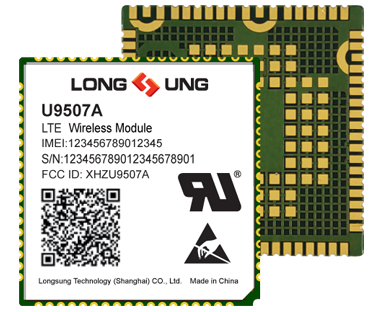

U9507A

U9507A is a new generation of Longsung LTE wireless module, rich of Internet protocols, and indstry- standard interfaces and abundant functionalities. It can be designed in many kinds of applications which can work on LTE-FDD/UMTS/GSM/GPS/GLONASS (Optional) network.。
On LTE-FDD network, U9507A enables connect to the Internet at DL data speed up to 150Mbps and UL data speed up to 50Mbps. In the area where LTE service are not available, U9507A still enables reliable and secure data connect over 3G(UMTS) or 2G(GSM) network.
U9507A provides SMS, MMS, Phonebook functions as well as function. It can be designed in many kinds of applications. Such Electric-book, MID, Vehicle equipment, etc.

7776

分享
  • 產品概述
  • 產品特性
  • 相關下載

U9507A is a new generation of Longsung LTE wireless module, rich of Internet protocols, and indstry- standard interfaces and abundant functionalities. It can be designed in many kinds of applications which can work on LTE-FDD/UMTS/GSM/GPS/GLONASS (Optional) network.。
On LTE-FDD network, U9507A enables connect to the Internet at DL data speed up to 150Mbps and UL data speed up to 50Mbps. In the area where LTE service are not available, U9507A still enables reliable and secure data connect over 3G(UMTS) or 2G(GSM) network.
U9507A provides SMS, MMS, Phonebook functions as well as function. It can be designed in many kinds of applications. Such Electric-book, MID, Vehicle equipment, etc.


General features:
? EDGE multi-slot class 33
? GPRS multi-slot class 33
? Compliant to GSM phase 2/2+
? Output power: - Class 3 (0.25W) for LTE/UMTS    - Class 4 (2 W) for GSM 850    - Class 1 (1 W) for GSM 1900
? Control via AT commands: (3GPP TS27.005/3GPP TS27.007 )
? Supply voltage range 3.3V- 4.2V
? Low Power consumption:  - Sleep mode: 3mA    - Power down: 16 μA
? Dimensions: 31.0×30.0×2.4mm
? Operation Temperature: -40°C to +85°C


Band Configuration:
U9507A:
? LTE-FDD Band 2/4/5/12/13/17/28
? UMTS Band 2/4/5
? GSM Band 2/5


Specifications for data:
? Support Release 11 Category 4
? LTE-FDD up to 150 Mbps DL,50 Mbps UL
? DC-HSPA+ up to 42Mbps DL,5.76Mbps UL
? EDGE class 33: 296Kbps DL,236.8Kbps UL
? GPRS class 33: 107kbps DL,85.6kbps UL
? CSD up to 14.4 kbps
? Transparent mode
? PBCCH support
? PPP-stack
? Coding schemes CS 1,2,3,4
? FOTA
? TCP/IP
? NDIS


Specifications for GPS:
? GPS frequency: 1575.42MHz
? At least support 44 channels
? Location accuracy: ＜ 10m
? Sensitivity: - Acquisition: -158dBm   - Tracking: -162dBm
? TTFF: - Cold Start: 28S   - Warm Start: 18S   - Hot Start: 1S



Specifications for SMS:
? Point-to-point MO and MT
? SMS cell broadcast
? Text and PDU mode



GLONASS(Optional):
? GLONASS frequency: 1601.7MHz
? At least support 44 channels
? Sensitivity: - Acquisition: -155dBm    - Tracking: -160dBm
? TTFF:  - Cold Start: 35s     - Warm Start: 29s      - Hot Start: 1s



Interfaces:
? Power supply
? USB 2.0 high speed
? UICC/SIM/UIM card interface 3 V, 1.8 V
? UART
? PCM
? Antenna connector
? HSIC


Approvals:
? RoHS / CE / GCF / RCM / NCC



 Additional features:
? VoLTE
? Phone book
? PCM
? DTMF

按文件類型搜索

  • U9507A_模塊規格書_V1.9 PDF 2020-10-22

  • U9507系列_模塊硬件接口手冊_V2.8 PDF 2020-10-22
